Corner bathrooms often look spacious enough on a floor plan until the shower door begins to compete with a toilet, vanity, or narrow walkway. Neo angle shower doors solve some of these conflicts by cutting across the front corner, but the angled footprint can also reduce entry width and usable space inside the enclosure.
Choosing one therefore depends on more than bathroom size or appearance. The right decision comes from checking door clearance, actual projection, interior comfort, base geometry, and water-control details before ordering. These factors reveal when a neo-angle layout improves the room—and when another enclosure shape will work better.
A square corner enclosure uses two bathroom walls, but its outer front corner can extend into the main circulation route. That projection matters in a narrow ensuite or guest bathroom where someone must pass between the shower and a vanity, toilet, or doorway. Replacing the projecting right angle with an angled front can create a smoother path and reduce the chance of brushing against the enclosure.
This layout is especially useful in apartments, compact guest bathrooms, and renovations where plumbing fixes the shower in one corner. The benefit is not simply a smaller-looking enclosure; it is a better relationship between the footprint and everyday circulation.
Door position often determines whether neo angle shower doors are suitable. A straight-front pivot door may collide with a toilet, open across vanity drawers, or leave too little space for someone to step out and reach a towel. An angled entrance can face the clearest part of the room instead of forcing access from one side.
Consider the full sequence of use: approach, open the door, step clear, enter, and close it comfortably. The same process must work in reverse on a wet floor. An angled entrance succeeds only when it simplifies that sequence.
A neo-angle enclosure should not be chosen simply because the room is small. A square or rectangular shower may be better when users need a wider entry, more elbow room, a built-in seat, or several grab bars. A walk-in arrangement may also suit projects where accessibility matters more than minimizing the footprint.
The design is less convincing when the angled door still faces an obstruction or when clipped corners remove too much interior space. In a large bathroom, a broader enclosure may offer easier movement without affecting circulation.
Bathroom Condition | Neo-Angle Fit | Main Consideration |
Narrow route beside the shower | Strong | Angled front reduces corner projection |
Toilet or vanity blocks a straight entrance | Strong | Doorway can face a clearer area |
Existing neo-angle tray | Strong | Enclosure can follow the established footprint |
Large, open bathroom | Moderate | A wider enclosure may be more comfortable |
Wide-access entrance required | Limited | Verify the actual clear opening |
Nominal sizes rarely describe everything a buyer needs to know. Two enclosures may share the same wall dimensions while using different return-panel widths, door widths, or front projections. Measure both finished wall lengths, the enclosure height, each fixed panel, the angled entrance, the tray or curb, and the furthest point that the glass reaches into the bathroom.
Measure after wall finishes are complete whenever possible because tile, waterproofing, and trim can reduce the opening. Check near the base, at mid-height, and near the top because walls may lean. Confirm that the base is level and that its angled curb and drain position match the enclosure plan.
Painter’s tape provides a more realistic test than a product drawing. Mark both wall runs, the fixed return panels, and the full angled front. For a pivot design, draw the complete door-swing arc. Then open the bathroom door, vanity drawers, cabinets, and toilet lid to expose conflicts that are easy to miss on an empty plan.
Stand inside the taped shape and copy normal shower movements. Turn, raise both arms, bend, reach for the controls, and step through the entrance several times. Also confirm a comfortable dry area outside. This test reveals the difference between “fits” and “works.” Repeat it with the people who will use the shower most often, since height, reach, and preferred entry movement can change the result.
Floor Test Checklist
● Mark the complete outer footprint.
● Add the door-opening path and handle projection.
● Test entry, turning, bending, and reaching.
● Open every nearby door, drawer, and lid.
● Confirm a usable dry standing area.
● Check that the enclosure does not narrow the main walkway.
Prefabricated trays, tiled curbs, existing bases, and custom corners require different checks. A replacement enclosure must follow the actual curb geometry; approximate dimensions can produce poor alignment, uneven seals, or a door that will not close.
Check wall plumb, curb width, base level, tile thickness, and the adjustment range built into the frame. A framed bifold neo-angle configuration may use a standard 900 × 900 × 1850 mm format, while non-standard sizing can cover a broader installation range. Adjustment allowances and glass thickness must also be checked because buyers should evaluate the complete specification rather than only the advertised footprint.
Custom glass or visibly uneven walls call for professional final measurement after the tray, curb, and wall finishes are complete. Tempered safety glass is produced to its final dimensions and cannot simply be trimmed on site.

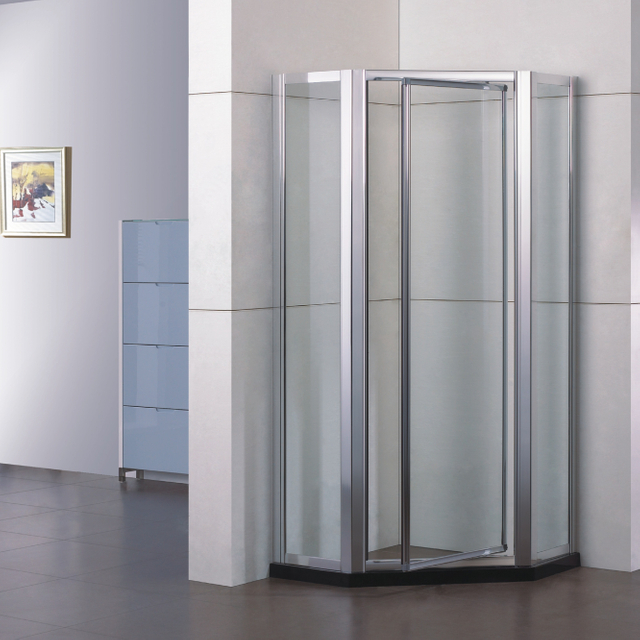

The enclosure shape determines where the glass sits, while the opening mechanism determines how the entrance behaves. A pivot door offers a direct, familiar movement and suits layouts where the angled front faces clear floor space. Its full opening path must be checked, including the handle and the user’s standing position. A generous-looking entrance can become awkward if the panel swings toward a vanity corner or toilet.

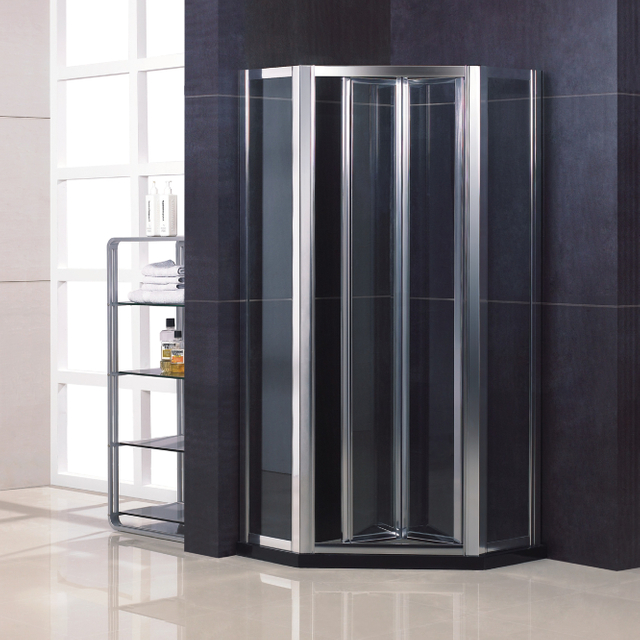

Framed bifold neo angle shower doors divide the moving panel so that it occupies less floor area while opening. This can be helpful when a full pivot arc would reach another fixture or interfere with the bathroom entrance. The trade-off is additional hardware, seals, and joints, all of which should remain accessible for cleaning and periodic inspection.
Himalaya offers framed pivot and bifold configurations for neo-angle corner installations, allowing the enclosure shape and door action to be selected separately. The right option is the one that provides the clearest approach, simplest movement, and most practical opening path in the actual room.
Framed systems define the glass edges clearly and may provide useful adjustment tolerance in renovation projects. They can also support thinner glass than some minimal-frame arrangements. Semi-frameless designs reduce visible metal around selected edges, while minimal-frame enclosures create a more open appearance but generally depend on accurate walls, secure fixing points, and precise glass dimensions.
Cleaning access should influence the choice. Smooth glass and uncomplicated frame profiles are easier to wipe than deep channels or crowded hardware intersections. Clear glass can visually connect the shower with the rest of a compact bathroom, whereas textured or privacy glass separates the shower area more strongly. Neither choice changes whether the layout works.
Finish selection comes last. Handles, profiles, and hinges can coordinate with taps and accessories, but color should not outweigh adjustment capacity, structural support, entry width, or maintenance access. Easy-clean glass treatment can also reduce the effort required to remove water spots and soap residue during routine maintenance.
Water containment begins with layout, not silicone. The showerhead should not direct concentrated spray toward the door gap, glass-to-glass joints, hinge openings, bottom sweep, or threshold. In a compact enclosure, the showerhead and angled entrance may be close, so spray direction should be checked before plumbing positions are finalized.
The base and threshold should guide water toward the drain. Seals need continuous contact, and the bottom sweep must meet the curb evenly. Water may otherwise travel along a poorly sloped curb, pass through an interrupted seal, or rebound from spray aimed at the entrance.
Angled panel connections must match the enclosure hardware and tray geometry. Verify wall plumb, base level, front angles, structural backing, pivot or hinge support, door alignment, and sealing gaps before fabrication or drilling. Small discrepancies may cause binding, uneven clearances, or adjustment beyond the frame’s intended range.
The moving panel places repeated loads on pivots, hinges, profiles, or adjacent glass, so the fixing surface must suit the selected hardware. Identify concealed services before drilling and confirm any reinforcement before tiling.
When different parties supply the tray, walls, glass, and installation, share one dimensioned drawing and assign responsibility for final site measurement.
A useful inquiry should describe the room, not merely the appearance. Include finished dimensions, front projection, tray or curb details, door preference, opening direction, obstacles, glass type, frame preference, and visible irregularities. Add photos and a simple dimensioned plan.
Project buyers should state whether they need supply only or installation support, then confirm packaging, instructions, spare seals, replacement hardware, and drawing approval. For repeated hotel or apartment installations, record one approved configuration so later units are checked against the same dimensions and hardware schedule.
Information | Details to Send |
Finished opening | Both wall lengths, height, and front projection |
Base type | Tray, tiled curb, existing base, or custom floor |
Door operation | Pivot or bifold |
Clearance limits | Toilet, vanity, radiator, or bathroom door position |
Glass and frame | Glass type, privacy level, thickness, and frame preference |
Site condition | Wall plumb, base level, and adjustment required |
Project scope | Residential, hotel, apartment, or renovation |
Installation | Supply only or installation support required |
Pivot and bifold neo angle shower doors serve different clearance conditions, while standard and customized sizing can support different corner layouts. Provide the room constraints first, then determine which mechanism and size range can satisfy them.
Neo angle shower doors are most effective when their angled footprint improves circulation without reducing entry comfort or usable shower space. Accurate measurements, suitable door movement, compatible base geometry, and careful water-control planning all contribute to a reliable installation.
Zhongshan Himalaya Bathrooms Co.,ltd. offers neo-angle configurations with pivot, bifold, framed, and customizable options for different corner layouts. Matching these options to actual room dimensions and nearby fixtures helps homeowners, designers, and project buyers create a shower area that feels less crowded, operates smoothly, and remains practical to maintain.
A: Neo angle shower doors form an angled entrance between two fixed side panels, creating a five-sided corner enclosure that reduces projection into the surrounding bathroom.
A: They work well when a square enclosure would obstruct a toilet, vanity, or walkway. However, the internal space and entrance width should still feel comfortable.
A: Common footprints range from approximately 32 to 38 inches along each wall. The right size depends on available floor space, user comfort, and nearby fixtures.
A: Most pivot models open outward for safer exit access. Some designs may allow limited inward movement, but the manufacturer’s instructions and local requirements should be checked.
A: Not when correctly measured and installed. Leakage usually results from poor curb slope, misaligned seals, uneven walls, or water spraying directly toward the entrance.
A: Measure both finished walls, enclosure height, angled front, tray or curb dimensions, and maximum projection. Check measurements at several heights to identify out-of-plumb walls.
