Views: 0 Author: Site Editor Publish Time: 2026-06-26 Origin: Site
Replacing a shower curtain with glass often looks simple until the measuring starts. Sliding shower doors and a Hinged Glass Shower Door solve different layout problems, but both depend on accurate opening width, level walls, safe glass handling, and correct sealing. The biggest installation mistakes usually happen before the door is even fitted: choosing the wrong opening style, drilling too soon, or ignoring uneven tile and threshold conditions. A careful setup helps prevent leaks, rubbing panels, loose hardware, and costly rework after the glass is installed.
A Hinged Glass Shower Door needs room to swing outward, a firm hinge-side wall, and a threshold that allows the bottom sweep or seal to work correctly. Before buying the door or drilling into tile, stand in front of the shower opening and map the swing path. The door should not hit a toilet, vanity, towel bar, storage niche, showerhead, or bathroom door. Even when a model is reversible, the chosen hinge side must still make sense for the bathroom layout.
Sliding shower doors solve space issues with tracks and rollers, while hinged doors rely on side-mounted hardware and a controlled arc of movement. That difference matters because the hinge side carries the door’s load every time the glass moves. If the wall is weak, uneven, or badly out of plumb, the installation may look acceptable at first but become noisy, leaky, or difficult to close. In alcove showers, semi-frameless and frameless styles can look cleaner, but they also make alignment errors more visible.

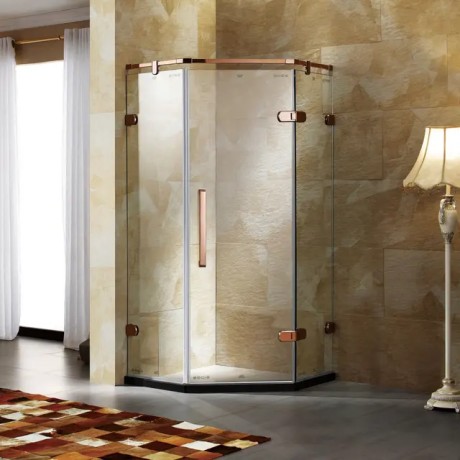

Himalaya’s hinged shower door range includes swing-door, frameless, semi-frameless, neo-angle, and custom options, so the opening should be judged before choosing a specific configuration. Some product details also show reversible installation, tempered glass, clear/frosted/rain glass choices, stainless steel handles, custom sizing, and 8mm or 10mm glass thickness options. These features are useful only when the finished shower opening can support the door properly.
A Hinged Glass Shower Door should be measured from finished surface to finished surface, not from unfinished framing or old door marks. Measure the opening width at the top, middle, and bottom because tile walls are often slightly uneven. If the three numbers are not the same, use the manufacturer’s measuring instructions rather than assuming the widest or narrowest point. Height should also be measured from the threshold or curb to the intended top of the door.
Wall plumb and threshold level are just as important as width. A wall that leans inward or outward can create a tapered gap along the strike side. A threshold that is not level, or that slopes poorly, can make the bottom sweep drag or leave a leak path. Check tile condition around the hinge side, because cracked tile, hollow spots, loose grout, or weak backing can affect screw holding strength.
Pre-installation measurement checklist
● Opening width: top / middle / bottom
● Finished height
● Wall plumb
● Threshold level and slope
● Swing clearance
● Tile or wall strength
● Showerhead, shelf, vanity, and toilet clearance
● Left- or right-hand hinge preference
A Hinged Glass Shower Door installation starts with controlled marking, careful drilling, and safe glass handling. Basic tools usually include a tape measure, level, pencil, drill, tile-appropriate drill bits, screwdriver, anchors, shims, masking tape, silicone sealant, gloves, and safety glasses. Suction cups are strongly recommended when the panel is large or heavy. The right tools reduce the temptation to hold the glass awkwardly, force hardware into place, or “correct” a poor mark after drilling.
Tempered shower glass is strong in normal use, but it should not be twisted, dropped, knocked on exposed edges, or rested directly on hard tile. A second person should help lift, stabilize, and position the door while the hinge hardware is being secured. Thicker glass, such as 8mm or 10mm panels, can create a premium feel, but it also increases the need for steady handling and suitable support. Hardware finish, handle style, and glass pattern are visual choices; anchoring and alignment are performance choices.
A Hinged Glass Shower Door should not be installed over soap film, damp caulk, dusty tile, or loose old sealant. Remove the previous door, scrape away old silicone, clean the wall surface, and dry the installation area completely. The threshold should be free from debris so shims and spacers can sit evenly. Good preparation makes measuring and sealing more predictable.
The hinge-side wall deserves closer inspection than the opposite side. Heavy glass should not rely on weak anchors alone if the substrate cannot hold the load. When drilling through tile, confirm that the planned holes do not intersect hidden plumbing, electrical lines, or fragile tile edges. If the hinge side sounds hollow, flexes under pressure, or has damaged tile, stop and evaluate the wall before moving forward.
A Hinged Glass Shower Door depends on the hinge line more than almost any other installation detail. If the hinge side is out of plumb, the door may swing unevenly, leave a tapered gap, or put stress on the hardware. Use a long level to mark the vertical reference line, then compare the mark against the actual hinge positions. Templates are helpful, but the final check should still be made against the supplied hardware.
Pencil marks should be clear, fine, and easy to verify before drilling begins. Masking tape can help prevent the drill bit from wandering on slick tile and makes the marks easier to see. Do not rely on old screw holes unless they match the new hardware exactly and still have solid backing. A few extra minutes of checking can prevent cracked tile, misaligned hinges, and visible patching work.
Drilling for a Hinged Glass Shower Door requires a slow, steady approach. Start with the correct bit for the surface material, especially when working through ceramic, porcelain, stone, or fiberglass. Let the drill do the work rather than pushing hard against the tile face. Heavy pressure can chip the glaze, crack the tile, or enlarge the hole beyond the anchor’s holding range.
Once the pilot holes are ready, install the anchors or fasteners recommended for the wall condition and door kit. Screws should be tight enough to hold the hinge hardware firmly, but not so tight that they crush the tile or deform the bracket. If a screw spins without gripping, remove it and solve the anchoring issue instead of covering the problem with silicone. Loose hinge hardware will not become stable after the glass is installed.
Before lifting the glass, check the hinge side again with a level. A Hinged Glass Shower Door becomes much harder to adjust once the panel is hanging, especially if the hardware has already been fully tightened. If the hinge line looks slightly off, loosen the fasteners, correct the position, and re-check the reference line. Forcing the panel into a crooked hinge setup can create rubbing, uneven gaps, and long-term stress.
A dry check also helps confirm whether the swing path remains clear. Open space in front of the shower should be verified again after the hinge hardware is in place, not only during the first measurement stage. Trim, towel bars, glass shelves, and vanity handles can sit closer to the swing path than expected. A clean hinge-side setup gives the rest of the installation a much better chance of staying leak-resistant and smooth.
Step | What to Check | Why It Matters |
Mark hinge line | Plumb and height | Prevents uneven gaps |
Drill holes | Correct bit and position | Reduces tile damage |
Fasten hinges | Secure but not over-tightened | Protects hardware and wall |
Dry-check alignment | Door swing path and gap | Avoids rework after hanging |
A Hinged Glass Shower Door should be lifted slowly and supported from the bottom edge with shims or spacers. The glass should never be dragged across tile or rested directly on the threshold while the hardware is being adjusted. One person should guide the door while the other supports the weight and keeps the panel steady. The goal is to bring the door into position without twisting the glass or stressing the hinge plates.
Semi-frameless and frameless installations require cleaner visual alignment because there is less metal framing to hide small errors. Even spacing around the strike side and bottom edge becomes part of the finished look. If the panel feels unstable, stop and reset your support position before tightening anything. A rushed lift is one of the easiest ways to damage glass, tile, or hardware.
A Hinged Glass Shower Door should move smoothly without scraping, lifting, or pulling against the hinge side. Check the hinge gap, strike-side gap, bottom clearance, and any contact area near a fixed panel. The gap does not need to look mechanically perfect in every older bathroom, but it should be consistent enough for the seals to work. If the door rubs at the threshold, adjust the height or hinge position before adding handles or silicone.
Install the handle only after the panel is stable and correctly aligned. A handle adds leverage, and users will naturally pull from that point every day, so the door must already be properly supported. Side seals, magnetic seals, or bottom sweeps should touch evenly without bending too hard. Clear, frosted, or rain glass changes the visual privacy level, but it does not change the basic alignment logic.
A Hinged Glass Shower Door should be opened and closed several times before any sealant is applied. Watch the gap as the panel moves and listen for scraping, clicking, or hinge strain. The door should not drift open or swing shut by itself unless the bathroom layout or hinge design intentionally creates that behavior. A door that moves on its own may indicate an out-of-plumb wall or incorrect hinge alignment.
Testing before sealing prevents messy rework. Silicone can hide small gaps, but it cannot fix a door that is sitting crooked or dragging at the bottom edge. Check the bottom sweep, strike-side seal, hinge-side clearance, and handle feel before locking the installation in place. A careful dry test often reveals problems that are easier to correct before the final waterproofing step.
A Hinged Glass Shower Door should be sealed only after the glass sits correctly and the hardware feels secure. The surfaces must be clean, dry, and free from dust, soap residue, and old caulk. Apply a neat bead of silicone only where waterproofing is required by the door design, usually along wall joints, fixed-panel contact points, or threshold areas. Avoid smearing sealant onto moving parts, hinge mechanisms, or drainage paths that should remain open.
Curing time matters because fresh silicone can shift, smear, or fail if the shower is used too soon. Follow the sealant instructions and keep water away from the installation during the curing period. A thin, controlled bead generally performs better and looks cleaner than an oversized bead used to cover poor alignment. Sealant should complete the installation, not compensate for loose hardware or bad measurement.
If water leaks near the bottom of a Hinged Glass Shower Door, check the sweep position, threshold slope, and silicone continuity. A sweep that sits too high may leave a water path, while one that presses too hard can drag and wear out early. Leakage near the hinge side usually points to poor wall plumb, weak seal contact, or hinge misalignment. Before adding more silicone, identify where the water actually escapes.
Rubbing at the bottom edge often comes from uneven shims, incorrect hinge height, or a threshold that is not level. Uneven side gaps usually mean the wall is out of plumb or the hinge side shifted during fastening. Loose hardware should be tightened carefully, but repeated loosening may indicate weak anchors or damaged backing. Forcing larger screws into poor support is not a reliable fix for heavy glass.
A Hinged Glass Shower Door is not always the best DIY project, even for confident homeowners. Professional installation is safer when the glass is large, the panel is very heavy, the opening needs custom sizing, or the walls are noticeably out of plumb. Drilling through expensive tile, stone, or unknown wall construction also increases the risk. The same is true when the hinge side lacks clear structural support.
Custom semi-frameless and frameless doors leave less room for guesswork because the final fit depends on accurate glass sizing and hardware placement. If the opening has unusual angles, a neo-angle layout, or a non-level curb, an installer can evaluate the conditions before glass is ordered. Paying for professional help may cost less than replacing damaged tile or reordering a mismeasured panel. The decision should be based on risk, not pride.
Final inspection checklist
● Door opens and closes smoothly
● Gaps are even
● Handle feels secure
● Bottom sweep contacts correctly
● No rubbing at threshold
● Silicone bead is clean and continuous
● Shower is not used before curing
● Water test shows no visible leakage
Installing sliding shower doors or a Hinged Glass Shower Door works best when the opening is measured carefully, the wall and threshold are checked first, and the glass is aligned before sealing. Most leaks, rubbing, and loose hardware problems come from rushing these early steps rather than from the door itself. Zhongshan Himalaya Bathrooms Co.,ltd. offers shower door options with tempered glass, practical hardware choices, and custom sizing support, helping homeowners and project buyers match the right door structure to the bathroom layout and achieve a cleaner, more reliable shower upgrade.
A: Yes, if the opening is straight, the wall is solid, and the glass size is manageable. Heavy panels or uncertain wall support usually require two people or professional help.
A: A hinged door needs enough outward swing space so it does not hit a toilet, vanity, towel bar, or bathroom door. Always test the swing path before drilling.
A: Sliding doors avoid swing clearance issues but require accurate track, roller, and panel alignment. Hinged doors need stronger side support and more precise hinge positioning.
A: Common causes include uneven walls, poor threshold slope, misaligned seals, gaps at the bottom sweep, or applying silicone before the door is properly adjusted.
A: Many shower door installations require waiting about 24 hours before use, but curing time depends on the sealant instructions and bathroom humidity.
