How To Measure for Sliding Shower Doors And Bathtub Doors

Introduction

Measuring for Sliding Shower Doors or bathtub doors often feels simple until the opening proves uneven. One wall may lean, the tub ledge may be slightly sloped, or the old frame may hide the true finished width. Good measurements help you avoid ordering glass that fits on paper but causes gaps, leaks, or difficult installation.

Before choosing a door, you need to check width, height, wall alignment, threshold condition, and available adjustment range. These details show whether a standard, adjustable, or custom door will fit safely and cleanly.



Prepare the Right Tools and Record Measurements the Right Way

Use a Steel Tape, Level, Pencil, and Photos

Reliable measuring begins with tools that reduce small errors. Use a steel tape measure because it stays straight across the opening and gives a more dependable reading than a soft tape or flexible ruler. A pencil, notebook, and painter’s tape help mark each point without damaging tile, acrylic, stone, or painted wall surfaces. A 4-foot level is useful because width and height alone cannot show whether the side walls lean inward or outward. Phone photos also help when the opening has uneven tile edges, a curved tub rim, window trim, nearby fixtures, or an old frame still attached.

Measure the Finished Opening, Not the Old Door Frame

For a replacement project, the finished opening is the number that matters. Old tracks, side jambs, silicone, and trim may hide the true wall-to-wall dimension, so measure from finished wall to finished wall after removal whenever possible. Renovation work can also change the final size because new tile, wall panels, backer board, waterproofing layers, or a repaired surround may reduce the opening. If the bathroom is still under construction, treat early numbers as planning dimensions and measure again before ordering Sliding Shower Doors or bathtub doors. Use one unit system throughout, whether inches or millimeters, and avoid rounding too early.

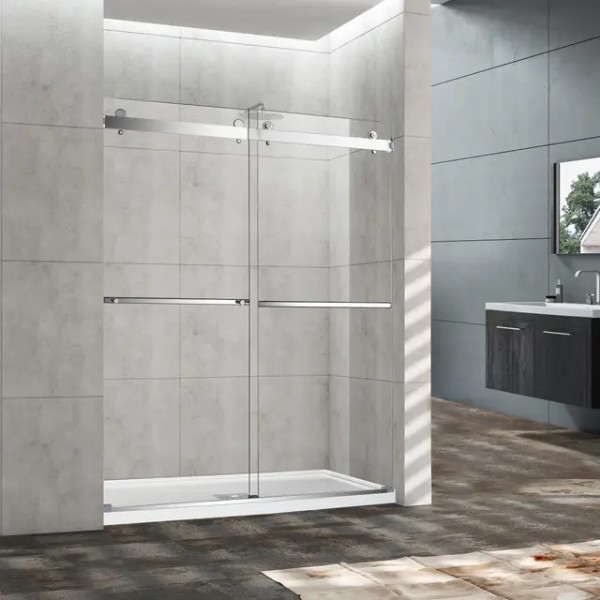

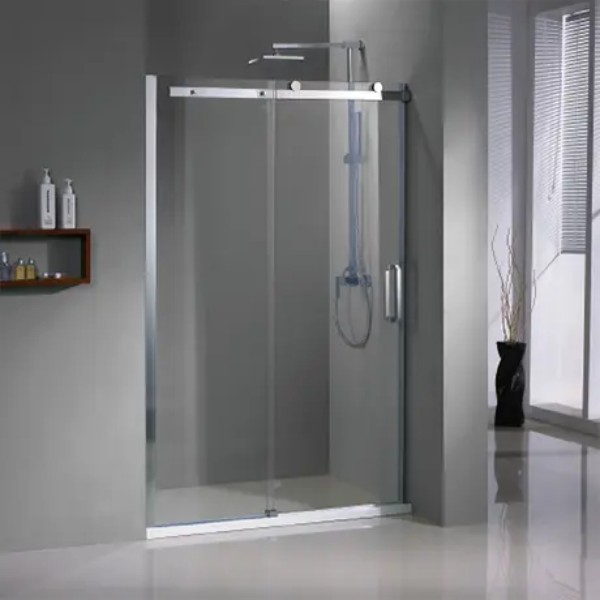

Measure Width and Height for Sliding Shower Doors

Measure Width at the Top, Middle, and Bottom

Shower walls are rarely perfectly parallel. Tile thickness, framing movement, waterproofing buildup, and uneven installation can create small changes from top to bottom. For Sliding Shower Doors, measure the inside width near the top of the opening, again around the middle, and again close to the shower threshold. The smallest width is usually the safest reference because the door system must fit through the narrowest part of the opening. Do not average the three numbers, because an average can make the selected door too wide for the tightest point.

Measure Height on Both Sides of the Opening

Height should be measured from the shower base, curb, or threshold to the intended top of the door. Take this measurement on the left side and again on the right side because the base may not be perfectly level. Most Sliding Shower Doors are installed within the shower opening, so the bottom reference is the surface where the guide or track will sit. The finished height must work with the glass panel height, top rail position, roller clearance, and any installation clearance required by the system. Himalaya Sliding Shower Doors examples include customizable sizing, adjustment allowance, and tempered safety glass options, so exact records are useful before selection.



Measure Bathtub Doors Differently from Shower Stall Doors

Measure from the Tub Ledge, Not the Bathroom Floor

Bathtub doors and Sliding Shower Doors do not share the same height reference. A bathtub door is measured from the tub ledge, not from the bathroom floor. The panels sit above the tub rim, so the usable height begins at the top surface of that ledge. Bathtub door height is usually lower than a full shower enclosure because the tub already raises the bathing area. If the tub has a high rim, low ceiling, or shower head close to the door, the height should be checked carefully before choosing Sliding Shower Doors for a tub installation.

Check Whether the Tub Ledge Can Support a Sliding Track

Unlike many Sliding Shower Doors installed on a shower curb, a sliding bathtub door needs enough flat ledge width for the bottom guide, track, or guide block. The ledge should be stable, reasonably level, and wide enough to support the hardware without placing it on a curved or sloped edge. If the ledge tilts slightly inward toward the tub, water is more likely to return to the bathing area; if it tilts outward, leakage risk increases. Bypass bathtub doors also need proper panel overlap, so width measurement is not only about fitting glass between two walls. Himalaya bathtub door examples include common sizes such as 60 × 57 inches and 48 × 57 inches, along with custom sizing, adjustment allowance, and different glass thickness options.



Check Plumb, Level, Threshold, and Obstructions Before Choosing a Door

Check Whether Side Walls Are Plumb

Side walls that are out of plumb can create uneven gaps, difficult roller alignment, and inconsistent contact between glass and wall profiles. Place the level vertically against the left wall, then repeat the same check on the right wall. Record whether the top of each wall leans inward, outward, or remains close to straight. This step matters even more for frameless and semi-frameless Sliding Shower Doors because the finished look depends on controlled gaps and clean lines. Small adjustment ranges can handle minor variation, but they cannot correct severe wall movement.

Check Whether the Threshold or Tub Ledge Is Level and Usable

Sliding systems work best on a stable, reasonably level bottom surface. In a shower stall, that surface may be a curb, threshold, or shower base edge; in a bathtub opening, it is the tub ledge. Use the level horizontally across the bottom surface and note the slope direction. Water should drain toward the shower or tub area, not toward the bathroom floor. For Sliding Shower Doors, a complete measurement record should include not only width and height but also whether the bottom surface can accept the guide, track, and seal.

Look for Handles, Toilets, Vanities, Towel Bars, and Shower Fixtures

Sliding Shower Doors and bathtub doors do not swing outward, but clearance still matters. Handles, towel bars, glass panel overlap, and moving panels must avoid toilets, vanities, trim, and shower fixtures near the opening. A toilet beside a bathtub, a vanity close to the shower, or a towel bar near the entry can limit comfortable access. Protruding shower valves, shelves, window trim, uneven tile borders, and raised decorative bands can also interfere with panel movement or sealing. Photograph these areas so the opening can be reviewed as a real installation space, not just a set of dimensions.



Decide Whether a Standard Size, Adjustable Door, or Custom Door Makes Sense

When a Standard or Adjustable Size May Work

A standard or adjustable door may work when the opening is close to a common width, top-to-bottom variation is minor, and both side walls are reasonably plumb. The threshold or tub ledge should also be flat enough to support the guide or track. In these conditions, Sliding Shower Doors with the right adjustment range can usually cover small site differences. Adjustment range should be treated as tolerance, not as a repair method, because it cannot fix a badly sloped ledge, weak tub rim, or walls that lean too far out of plumb. Himalaya’s Sliding Shower Doors and bathtub door categories include sliding, bypass, frameless, and semi-frameless configurations, so a prepared measurement record helps narrow the options.

When Custom Sizing or Professional Measuring Is Safer

Custom sizing or professional measuring is safer when the top, middle, and bottom widths differ significantly. Extra caution is also needed in older homes, remodeled bathrooms, tiled-over walls, very wide openings, curved tub ledges, or spaces where the wall finish is incomplete. A custom review is not only about appearance; it can help prevent leaks, panel misalignment, roller problems, excessive gaps, and installation delays. Use a simple rule before ordering: if you cannot tell which measurement controls the final size, confirm before purchasing. The same rule applies when the smallest width falls near the edge of the door’s adjustment range.

Pre-order checklist:

● Measure width at the top, middle, and bottom of the finished opening.

● Mark the smallest width clearly and avoid averaging the numbers.

● Measure height on both the left and right sides.

● Check wall plumb on both sides with a level.

● Measure the shower threshold or tub ledge width.

● Confirm the bottom surface is stable, usable, and sloped toward the wet area.

● Photograph nearby fixtures, trim, and obstructions.

● Ignore or remove the old frame when recording final dimensions.

● Use inches or millimeters consistently.

● Review the product adjustment range before ordering.



Conclusion

Accurate measuring helps prevent the most common problems with Sliding Shower Doors and bathtub doors: poor fit, uneven gaps, difficult track alignment, and water escaping from the opening. Width, height, wall plumb, threshold condition, and tub ledge support should all be checked before choosing a standard, adjustable, or custom-size door.

For projects where measurement accuracy affects both appearance and daily use, Zhongshan Himalaya Bathrooms Co.,ltd. provides sliding shower door and bathtub door options that can match different bathroom layouts, glass preferences, and sizing needs with a more controlled installation result.



FAQ

Q: How do I measure for Sliding Shower Doors?

A: Measure the finished opening width at the top, middle, and bottom, then use the smallest number. Also measure height on both sides and check wall plumb.

Q: Do I measure a bathtub door from the floor or the tub?

A: Measure from the top of the tub ledge, not the bathroom floor. The ledge is the surface where the bottom guide or track will sit.

Q: What if my shower opening is not the same width at the top and bottom?

A: Use the smallest width as the safer reference. If the difference is large, an adjustable or custom-size door may be needed for proper alignment.

Q: How much flat space is needed on a tub ledge for a sliding door?

A: The ledge should be wide, flat, and stable enough for the bottom guide or track. Curved or outward-sloping ledges can increase leakage risk.

Q: Should I measure before or after removing the old shower door frame?

A: Final measurements should come from the finished wall surfaces, not the old frame. Existing tracks, silicone, or trim can hide the true opening size.
